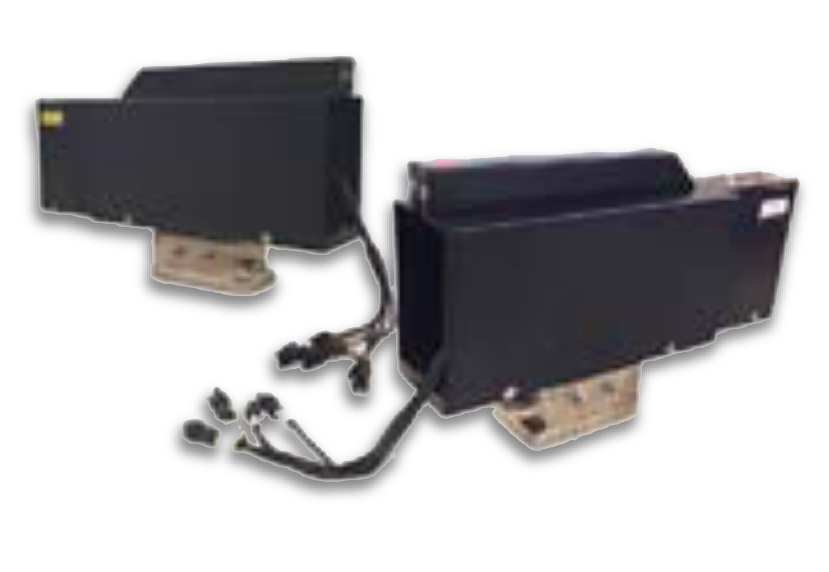

Vision Modules

Vision Modules

Cortex Imaging have a full series of flexible Vision Modules which contain of many inspection Capabilities covering all sides of inspection objects and fitted to most of the industry. Replacing old inspection method which needed many camera to cover all the area.

Vision Module Types

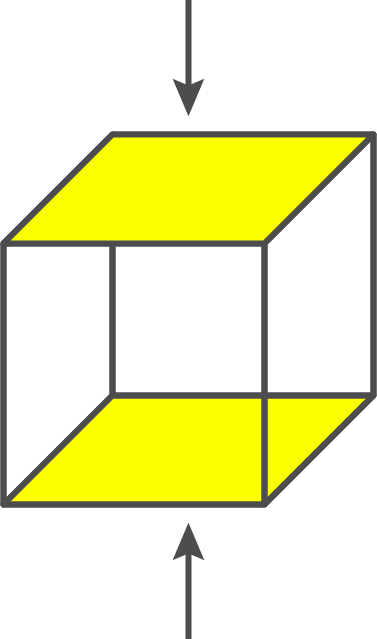

Top & Bottom Inspection

2 Camera Module

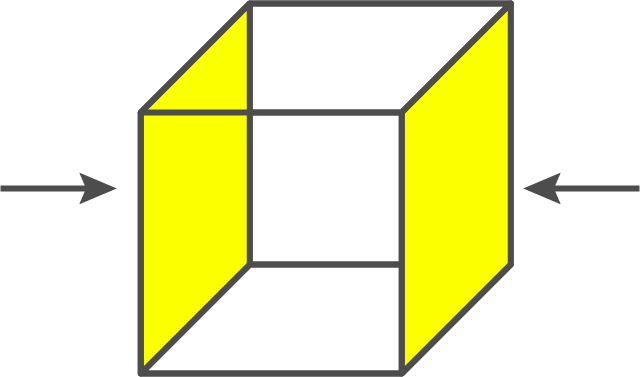

2’S Inspection

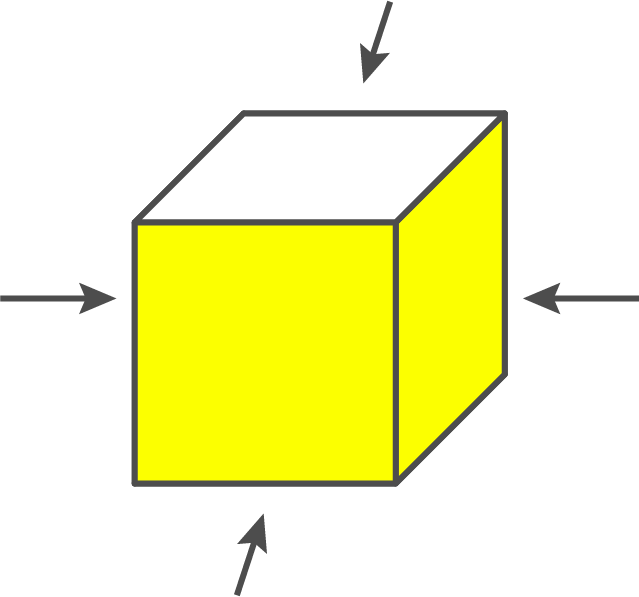

4’S Inspection

10’S Inspection

Covering the 4 corner of the inspection object

Features

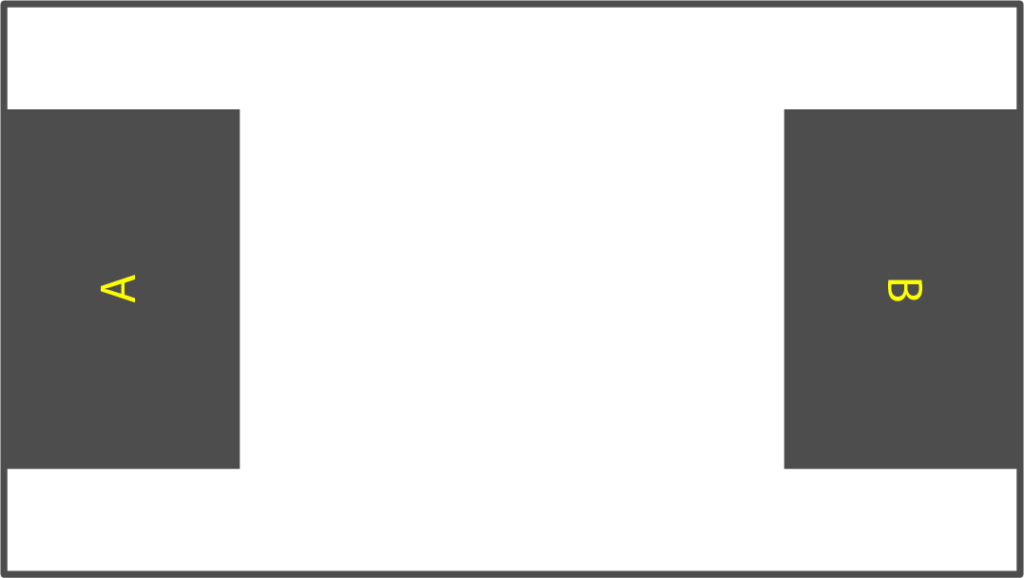

2’S Inspection

1 camera Module 2 instant result

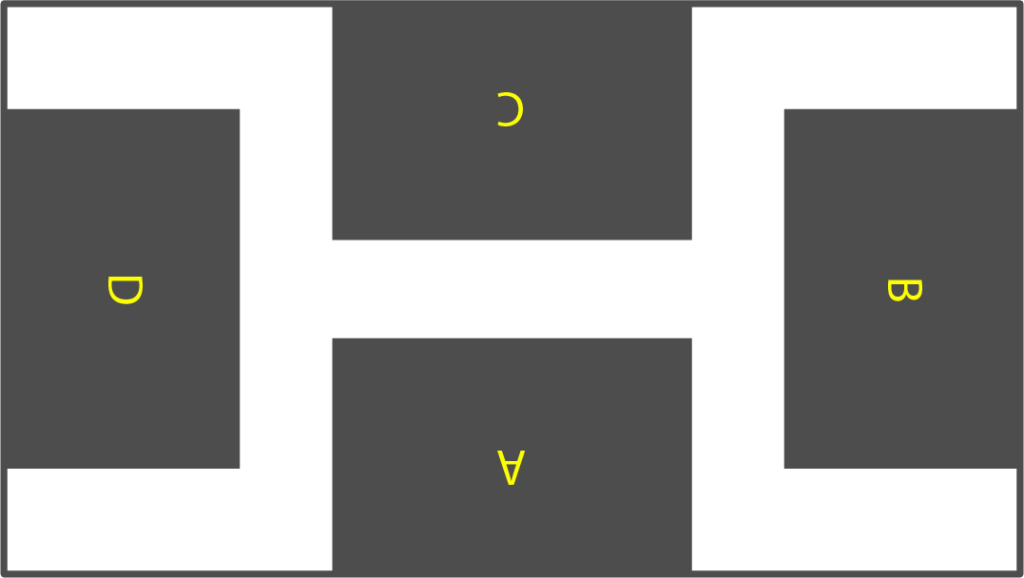

4’S Inspection

1 camera Module 4 instant result

Inspection Capabilities

Cosmetic Inspection Scratch, contamination & etc

Alignment / Positioning

Absence & Presence

Counting

Measurement

OCR/OCV/1D/2D Barcode
