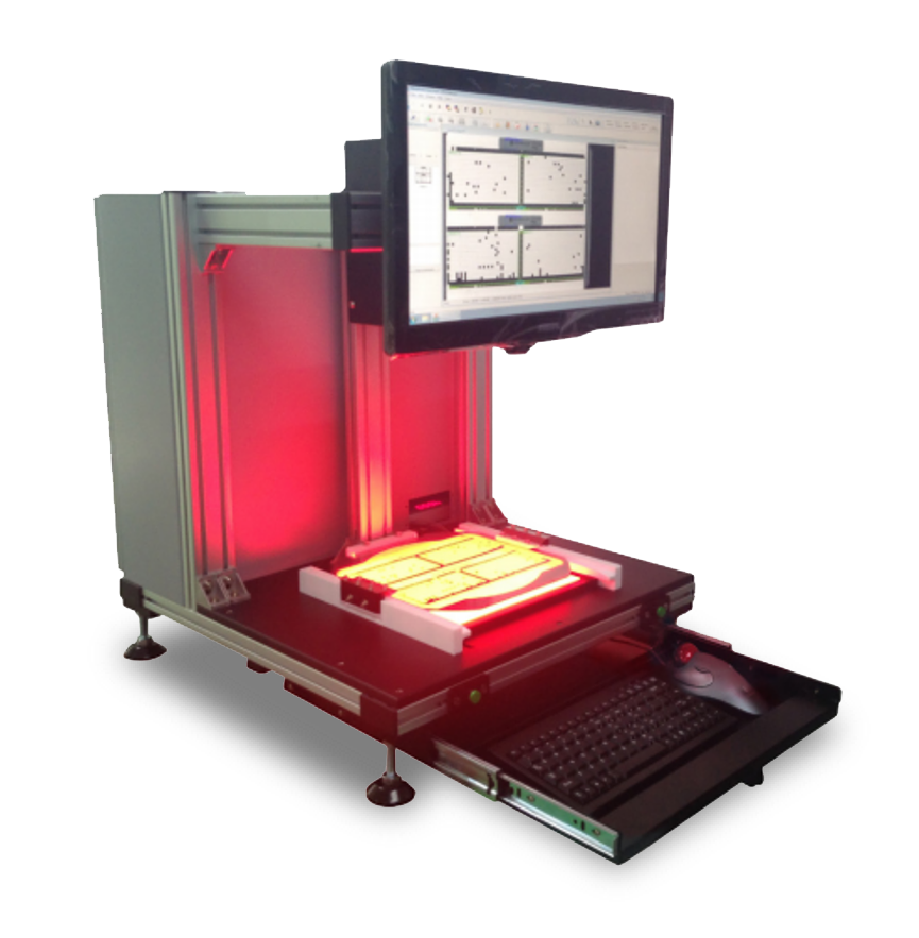

Desktop Inspection System
Desktop vision Inspection with Jig/Fixture
A user-friendly system that able to perform a simple vision inspection with quick reliable result.
Inspection objects can be easy to load with the option to place on the jig platform or on the tray to performs a periodic inspection.
Just a few button to start and complete a vision inspection.
Advantages
100% vision inspection for part
Automatic inspection
High Accuracy & Reliable Results
Easy Control & Instruction Manual
High Speed
Save Time & Cost
Multiple Inspection Capabilities
Compact in Size
Features
Jig table for
height adjustment
The system will loop & test every second
Inspection is triggered by pressing push button
Inspection Products

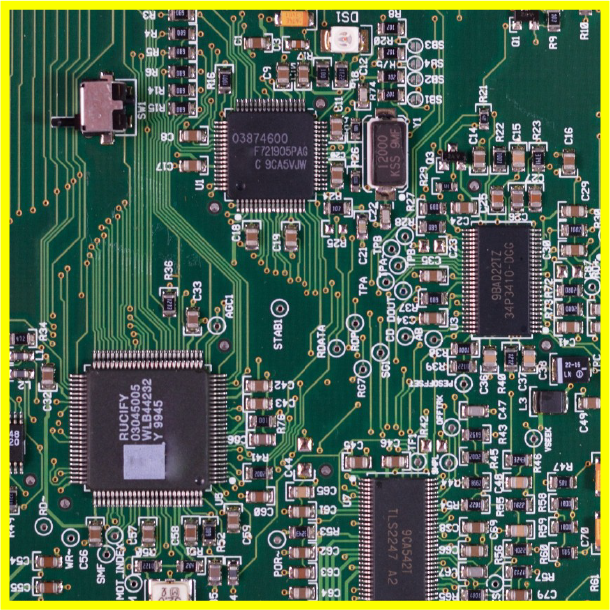

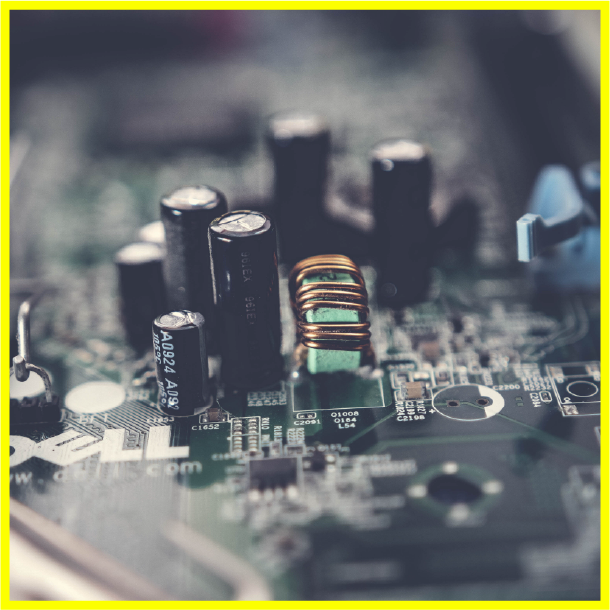

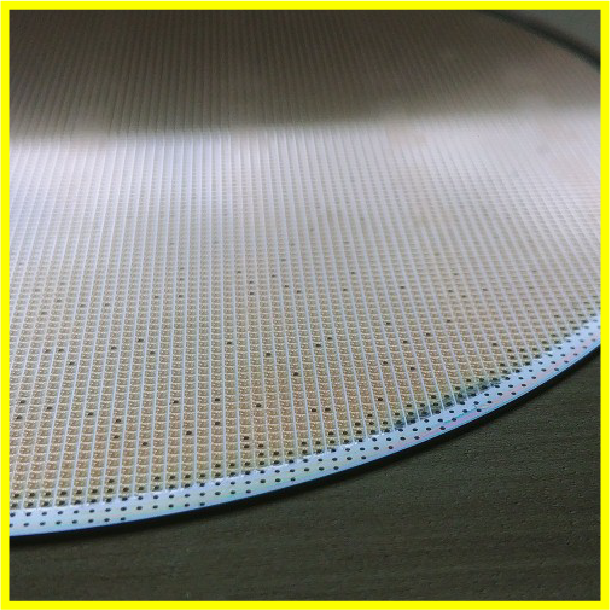

e.g. PCB, Wafer & components on board
Inspection Capabilities

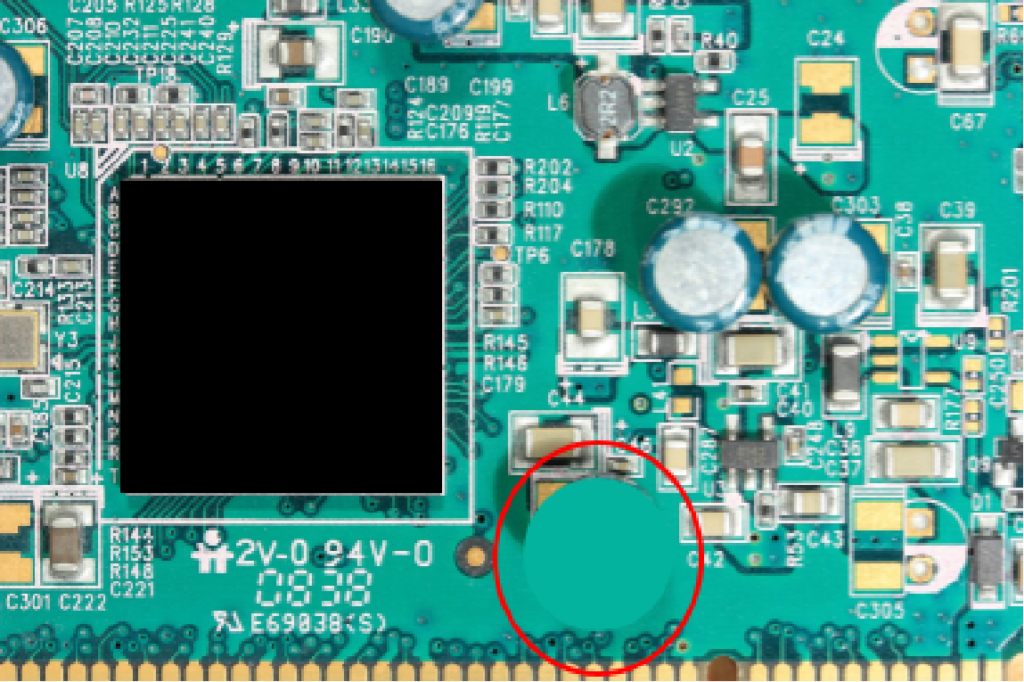

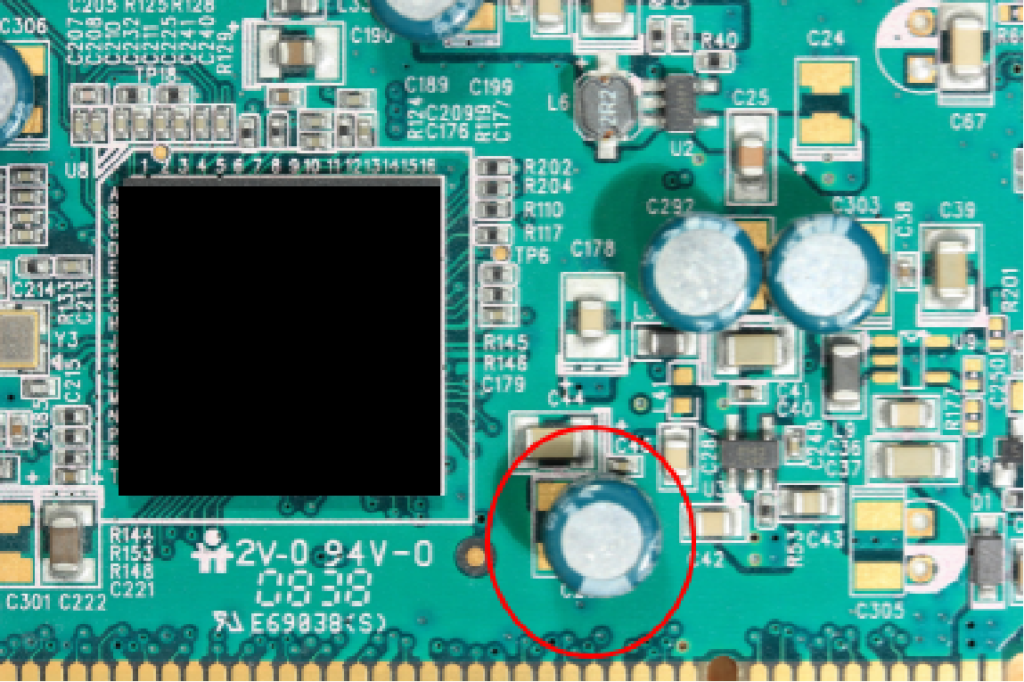

Absence/presence of component on board. Most thru hole component including ECap, connectors, crystal, resistor, PDIP housing, voltage regulator.

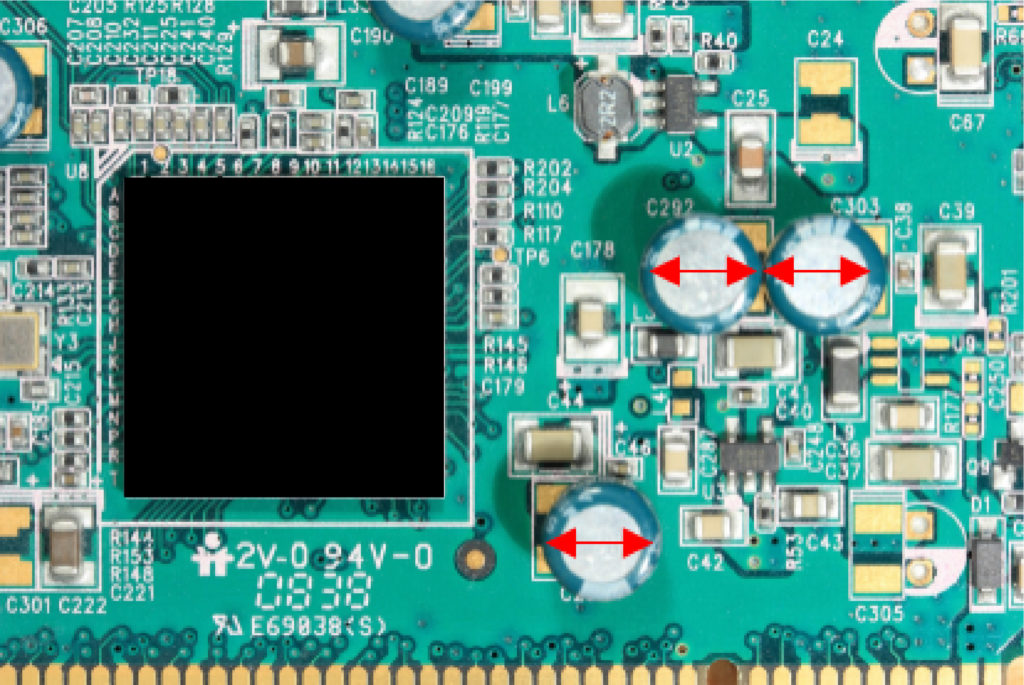

Mixed ECap component placement. Detect different diameter only and not capacitor values or color.
Detect Reverse Polarity for ECap, Connectors & PVR.
